Name: Boss Audio CHAOS EXXTREME 1000 Watts 2-Channel MOS
SKU: CXX1002
Price: 1727.68 ZAR
Availability: InStock

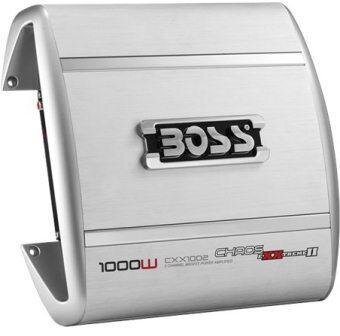

Boss Audio CHAOS EXXTREME 1000 Watts 2-Channel MOSFET Power Amplifier

Home/Store/Technology Needs/Car Electronics

Product Details

Boss Audio CHAOS EXXTREME 1000 Watts 2-Channel MOSFET Power Amplifier Retail Box 1 year Limited Warranty

Product Overview

Boss understands that amplifiers are placed in many different kinds of installations, so they incorporated a very flexible system of controls to help you integrate the Boss CXX1002 CHAOS EXXTREME 2 Channel Car Stereo Amplifier. Now it's easier to integrate the amp into your system regardless of the nature of your input source. Features include variable low pass and high pass crossovers and variable input gain controls. For further flexibility when using a subwoofer, 0-18dB Bass Boost remote level control is included.

Highlights

Full-Range, Class A/B Topology
MOSFET Power Supply
2/1 Channel
Low and High Level Inputs
Variable LP Crossover
1000 Watt Total Power Output
500 Watts x 2 Channel Total Power Output
High Pass Filter
Low Pass Filter
Bass Remote Included

Features

Chaos Extreme Series 2-Channel Class AB Car Amplifier
RMS Power Rating:
◦4 ohms: 175 watts x 2 chan.
◦Bridged, 4 ohms: 500 watts x 1 chan.
Max power output: 1000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
Soft turn-on circuit
2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminium alloy heat-sink
Fixed high-pass filter (80 Hz)
Variable low-pass filter (35-160 Hz)
8 gauge power and ground wiring is required for installation

.

Power Specifications - Full Range Channels

RMS Power @ 4 ohms-175 watts x 2 channels
Bridged RMS Power-500 watts x 1 channels
Peak Power Output-1000 watts x 1 channels

Amplifier Specifications

Amplifier Series-Chaos EXXtreme (Boss)
Amplifier Class-AB
Number of Channels-2
Total Peak Power Output-1000 watts
Total RMS Power Output-500 watts
Maximum Input Gauge Size-4 AWG
Minimum Impedance Unbridged-2 ohms
Minimum Impedance Bridged-4 ohms
THD at Rated RMS Power-0.01%
Speaker Level Inputs-Yes
Preamp Outputs-No
High-Pass Crossover Frequency-80 Hz Fixed
Low-Pass Crossover Frequency-35 - 160 Hz
Signal-to-Noise Ratio-103 dB
Channel Separation-90 dB
Bass Boost-0 - 18 dB
Bass/Gain Remote-Yes
Fan Cooled-No
Fuse Rating-40A x 1

Package Contents

Amplifier
Remote Subwoofer Control
High Input Cable With Connector
4 Mounting Screws
